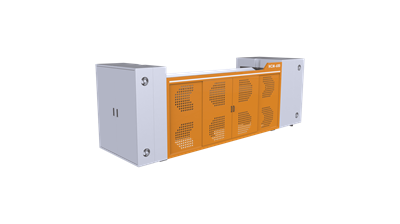

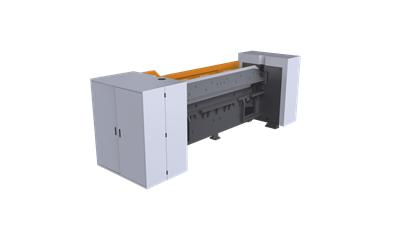

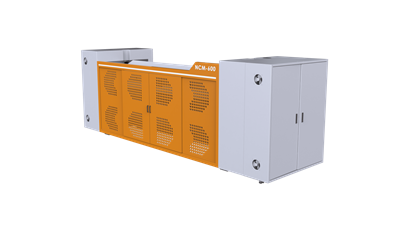

NCM-ZB CNC Folding Machine

Equipment

Process

Consulting

E-MAIL

NCMCO@163.com

Product advantage

Equipment use

It is used to form the frame of the locking edge/hinge edge of the front and rear door panels of various steel and stainless steel doors such as anti-theft doors/fireproof doors/medical doors/purification doors.


Working principle

After starting up, the data for the folding requirements is entered first. After the entry is completed, one side of the material is folded. After the folding is completed on one side, the direction is changed to fold the other side, thereby achieving the frame forming of the door panel lock/hinge edge.

feature of product

● Adopt 8-axis full servo CNC system to realize full CNC programming;

● Automatic forward and reverse folding functions can be realized without manual intervention for reversal;

● The upper knife and folding knife can be combined into various sizes in 10mm increments as needed;

● The maximum folding angle of forward folding and reverse folding can reach 150°

Technical parameters and main parts configuration list

1. Technical parameters

Technical Parameters	NCM-1600	NCM-2600	NCM-3200	NCM-4200
Bending length	1600mm	2600mm	3200mm	4200mm
Processing thickness	1mm	1mm	1mm	1mm
working height	780mm	840mm	885mm	885mm
Avoidance height	120mm	100mm	100mm	100mm
Folding knife working range	100mm	100mm	100mm	100mm
Open height	130mm	200mm	250mm	250mm
Pivot adjustment range	0mm	0mm	±10mm	1±10mm
Number of control axes	7個	7個	8個	8個
Control maximum power	15kw	22kw	23kw	25kw
Dimensions	*285014001600mm*	*285014001600mm*	*285014001600mm*	*285014001600mm*
equipment weight	2500kg	4500kg	6500kg	7500kg

2. Configuration list of main parts

serial number	name	brand
1	Linear Guides	Taiwan Bank of China
2	ball screw	Taiwan Bank of China
3	Control System	China New Generation/Huichuan
4	contactor	Schneider/Tianshui
5	Miniature Circuit Breaker	China Schneider
6	Intermediate relay	Japan Izumi
7	Proximity switch	China Schneider
8	Limit switch	China Schneider
9	Bearing	China Tianma Bearing
10	Reducer	the Great Wall
11	servo motor	Delta/Huichuan

Random information

serial number	name	quantity	Remark
1	Shipping list	1 serving
2	Acceptance report	1 serving
3	user's Guide	1 set
4	Electrical schematic diagram	1 set

Cooperation required from the user

1. Power supply: 380V, 50HZ, voltage fluctuation is -5% ~ +10%; when the voltage fluctuates greatly, the user must be equipped with a voltage stabilizer, otherwise the low-voltage electrical appliances will be in an abnormal working state, and the life of the electrical components will be reduced or Problems such as damage, scrapping of processed products, stoppage of work caused by motor alarm, damage to computer hard disk, etc.

2. Air source: output 0.6Mpa or above, dry and clean compressed air, air supply volume 0.3 cubic meters/minute; if the air is not dry enough, the user should be equipped with a cold dryer, otherwise water will enter the pneumatic parts and cause the piston friction resistance to change. Large, worn sealing rings lead to air leakage and other problems. Especially in winter, they are prone to freezing, leading to increased damage to pneumatic components.

3. Ambient temperature: 0°C ~ +40°C; below 0°C, parts that may contain water such as oil-water separators and gas tanks will freeze. The lubricating oil will be too viscous due to the low temperature, affecting the lubrication effect. , resulting in component damage or failure.

4. Environmental humidity: relative humidity 20~80%RH (non-condensing).

5. Stay away from strong vibration sources and electromagnetic interference; if the distance is too close, the user must be equipped with a filter, otherwise it will cause problems such as computer screen flashing, LED light flashing, driver alarms, encoder abnormalities, or interference with other nearby equipment.

6. An environment with less dust and no harmful and corrosive gases.

7. It is forbidden to cut off the power when the equipment is working, and keep the voltage stable.
